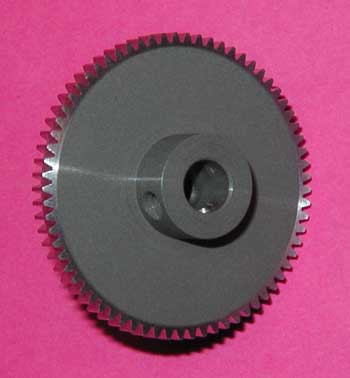

Spur Gears Pin Type Hub
STOCKED IN:
- 2024 ALUMINUM (STANDARD PART NUMBER)
- #303 STAINLESS STEEL (ADD “S” TO P/N)
- ACETAL RESIN (ADD “D” TO P/N)
AVAILABLE IN STOCK FROM 32 D.P. TO 120 D.P. / 0.8 TO 0.2 MODULE,
UP TO 1½ INCH O.D. (FOR LARGER SIZES, SEE SPUR GEARS—HUBLESS TYPE)
| BORE* | “H” DIAMETER** | TAP |
|---|---|---|
| .0937 | .250 | #2-56 |
| .1200 | .250 | “ |
| .1250 | .250 | “ |
| .1875 | .375 | #4-40 |
| .2500 | .500 | #6-32 |
* BORE TOLERANCE: +.0003, -.0002
**HUB DIAMETER NEVER LARGER THAN GEAR O.D.
AVAILABLE ON REQUEST:
- AGMA QUALITY 12+
- 14½° OR OTHER PRESSURE ANGLE
- OTHER BORE SIZES
- OTHER MATERIALS
