Spur Gears Clamp Hub Assembly

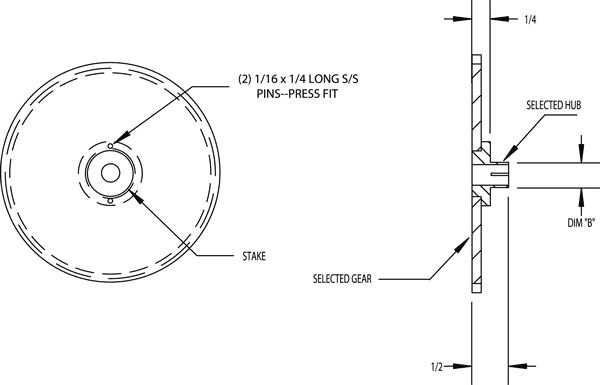

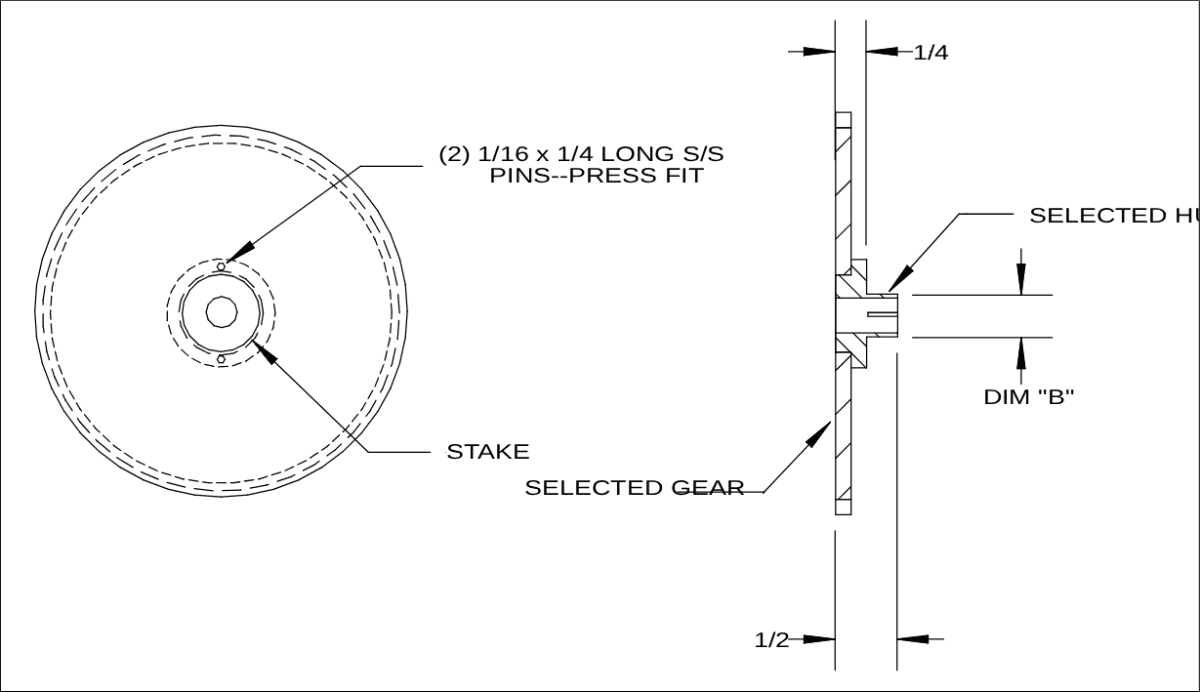

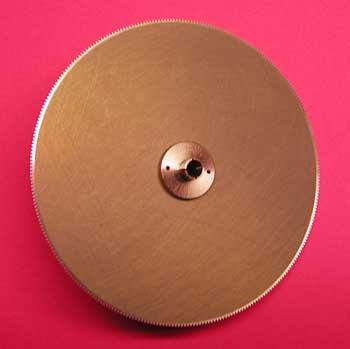

THESE ASSEMBLIES ARE MADE USING THE SELECTED HUBLESS GEAR, WITH A HUB PRESSED INTO THE BORE, STAKED, AND PINNED WITH TWO STAINLESS STEEL PINS.
ASSEMBLED HUB SPECIFICATIONS:
| BORE* | HUB NUMBER | DIMENSION “B” | MATERIAL |
|---|---|---|---|
| .1250 | SHA125 | .188 - .003 | 2024 ALUM |
| .1250 | SHS125 | “ | 303 S/S |
| .1875 | SHA187 | .250 - .003 | 2024 ALUM |
| .1875 | SHS187 | “ | 303 S/S |
| .2500 | SHA250 | .312 - .003 | 2024 ALUM |
| .2500 | SHS250 | “ | 303 S/S |
*BORE TOLERANCE: +.0003, -.0002
