 STOCKED IN:

bullet

2024 ALUMINUM            (STANDARD PART NUMBER)

bullet

#303 STAINLESS STEEL   (ADD “S” TO P/N)

AVAILABLE IN STOCK FROM 32 D.P. TO 120 D.P. / 0.8 TO 0.2 MODULE,

UP TO 1˝ INCH O.D.  (FOR LARGER DIAMETERS, SEE SPUR GEARS—HUBLESS TYPE)

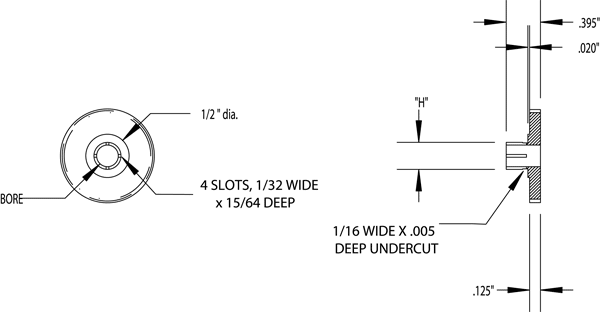

BORE*

“H” DIAMETER

.0937

.188 - .003

.1200

.1250

.1875

.250 - .003

.2500

.312 - .003

* BORE TOLERANCE: +.0003, -.0002

 AVAILABLE ON REQUEST:

bullet

 AGMA QUALITY 12+

bullet

14˝° OR OTHER PRESSURE ANGLE

bullet

OTHER BORE SIZES

bullet

OTHER MATERIALS
